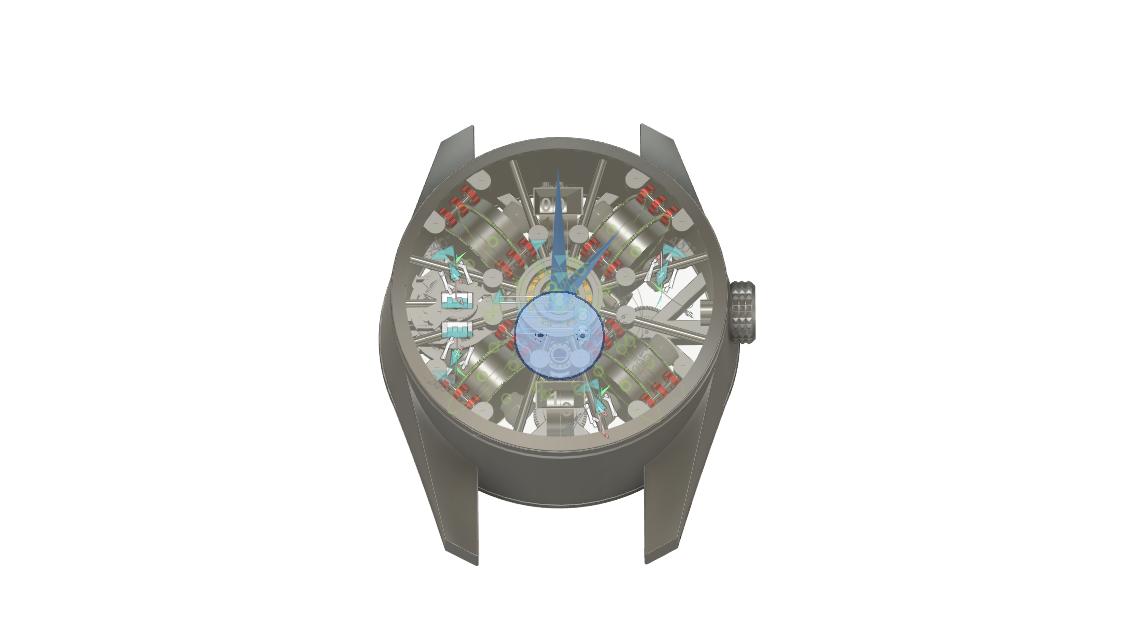

Center structure has 5 floors such as Basement Floor, 1st Floor, 2nd Floor, 3rd Floor and 4th Floor. This time, I will show you 3rd Floor. Position of 3rd Floor is following picture.
This is main plate of 3rd Floor. Diameter of main plate is about 13mm.
1.Install bearing. Bearing size is 1.0mm bore diameter , 3.0mm outside diameter and 1mm width.
2.Install bearing. Bearing size is 1.0mm Bore diameter , 3.0mm outside diameter and 1mm width.
3.Install bearing. Bearing size is 0.5mm bore diameter , 1.5mm outside diameter and 0.65mm width.
4.Install bearing. Bearing size is 4.0mm bore diameter , 7.0mm outside diameter and 2.0mm width.
5.Install bearing. Bearing size is 1.0mm bore diameter , 3.0mm outside diameter and 1mm width.
6.Install gear. Gear size is 0.6 Module, 10 number of teeth, 0.25mm thickness and 4.0mm hole diameter.
7.Install gear. Gear size is 0.6 Module, 10 number of teeth, 0.25mm thickness and 1.0mm hole diameter.
8.Install gear. Gear size is 0.4 Module, 10 number of teeth, 1.0mm thickness and 1.0mm hole diameter.
9.Install gear. Gear size is 0.25 Module, 20 number of teeth, 0.25mm thickness and 1.0mm hole diameter.
10.Install bearing. Bearing size is 1.0more diameter , 3.0mm outside diameter and 1mm width
11.Install gear. Gear size is 0.4 Module, 10 number of teeth, 0.25mm thickness and 0.5mm hole diameter.
12.Install gear. Gear size is 0.25 Module, 19 number of teeth, 0.25mm thickness and 1.0mm hole diameter.
13.Install gear. Gear size is 0.25 Module, 20 number of teeth, 0.6mm thickness and 1.0mm hole diameter.
14. Install bearing. Bearing size is 0.5more diameter , 1.5mm outside diameter and 0.65mm hole diameter.
15. Install gear. Gear size is 0.25 Module, 20 number of teeth, 0.25mm thickness and 2.5mm hole diameter.
16. Install gear. Gear size is 0.5 Module, 7 number of teeth, 0.25mm thickness and 1.5mm hole diameter.
17. Install gear. Gear size is 0.5 Module, 9 number of teeth, 0.25mm thickness and 0.5mm hole diameter.
This is back side of main plate of 3rd Floor.
18. Install bearing. Bearing size is 1.0more diameter , 3.0mm outside diameter and 1.0mm hole diameter.
19. Install bearing. Bearing size is 0.5more diameter , 1.5mm outside diameter and 0.65mm hole diameter.
